Fixed Knot Fence Machine

Fixed knot fence machine, is also called Deer fence machine, Grassland fence machine, Farm fence machine. Deer fence is extensively used in feeding animals, husbandry, mountain isolation, farm fence, etc
Machine Description  :
Fixed knot fence machine, also called Fixed knot machine or deer fence machine, is used to produce fixed knot fence for livestock husbandry, grassland protection and other isolation usage. Fixed knot fence machine adopts Panasonic control panel, easy operation..
Automatic device for stopping machine.
Panasonic PLC controller–High-degree automation; Easy and safe operation
Sophisticated PLC control and manufacturing technique to ensure machine smooth-running.
Speed-adjustable motor and servo motor to save energy and increase capacity.
Flattening pole to make smooth surface of finished products.
Products with diverse specification.
Protection mesh cover to ensure safety.

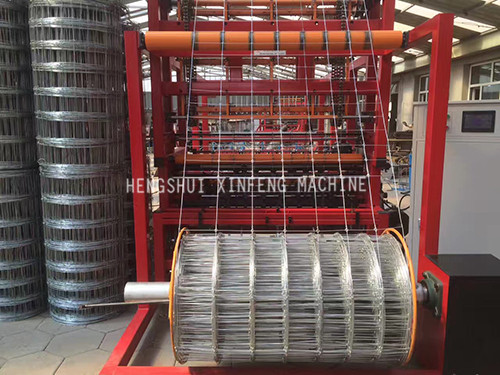

Fixed knot fence machine.

Technical Data:

Model	XF-1500	XF-2100	XF-2440	XF-2800
Max. weaving width	1.524M	2.082M	2.438M	2.8M
Max. number of line wire	16	18	20	24
Line / weft wire diameter	2.4mm-2.6mm
Twisted wire diameter	2.0mm-2.24mm
Line opening	76mm(3”) + N*12.5mm(1/2”);  “N” can be 1, 2, 3, 4……
Weft opening	75mm(3”), 150mm(6”), 300mm(12”), 450mm(18″)
Length of fence each roll	200m(660ft)
Power system	Speed adjustable motor and Servo motor (MIGE ISO9001-2008)
Voltage	As your request.
Control system	PANASONIC PLC  ( Direct voltage 24V)
Weight	8000kg	8700kg	9500kg	10100KGS

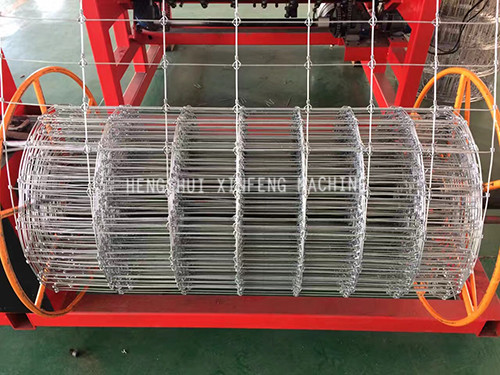

Finished products:
