wire butt welding machine

Butt welding machine for successive wire drawing production
Butt welding refers to connecting similar parts without overlapping with each other. It is an economical and reliable way of jointing without additional components.
Wire butt welding machine uses the principle of butt welding to make successive production possible. One notable characteristic of our butt welding machine is adopting accurate welding pressure and a stronger welding strength.

Several types of butt welding machines are at stock. Each of them has its own special application. You will find the right one for your particular requirement.

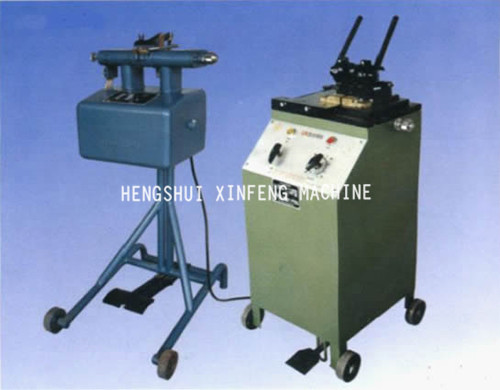

TypeⅠ Versatile butt welding machine

Usage:
Available for steel, iron, copper, aluminum, etc. in the fields of electric cable & wires, wire-stretching and construction.
Features:
1.Adjustable spring pressure makes the welding work runs smoothly.
2.Easy moving.
3.Easy operation.

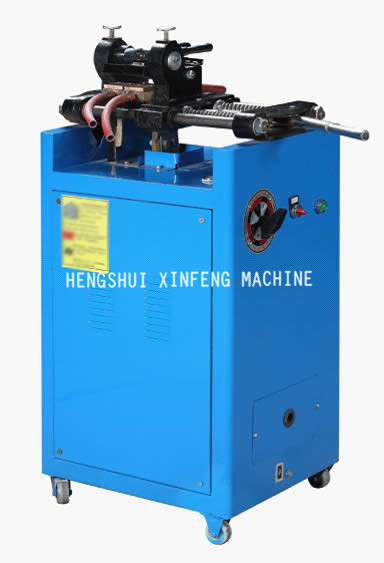

Type Ⅱ Manual butt welding machine

Manual butt welding machine means the welding pressure control is achieved by manual way. This type butt welding machine is mainly applied for round wire, flat wire, rebar steel made of ferrous and non-ferrous metals, such as low carbon steel, carbon steel, stainless steel, aluminum, copper and so on. As it doesn't need air compressor, it is especially suitable for the construction field.

Technical parameters:

Machine Model

Input Voltage(V)

Input Power (KVA)

No-load Voltage (V)

Welding Surface (mm2)

Input Current (A)

Power Regulate Range

UN4-25KVA

380-440V

25

1.76-3.52

400

65

1-8 Taps

UN4-75KVA

380-440V

75

3.58-7.16

650

198

1-8 Taps

UN4-100KVA

380-440V

100

3.96-7.98

800

263

1-8 Taps

UN4-125KVA

380-440V

125

4.04-8.09

1000

328

1-8 Taps

UN4-150KVA

380-440V

150

4.13-8.26

1250

395

1-8 Taps

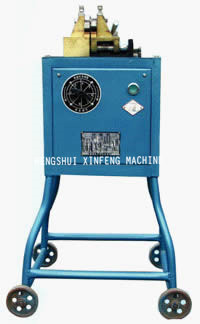

Type Ⅲ ferrous wire butt welding machine

It is especially designed for welding ferrous wire conductor, for example, the cable of low carbon steel wire. Easy and flexible operation makes it an optimum butt welding machine for the accessories of wire drawing machine.

Technical parameters:

Model

Inlet diameter

Input power

Type A

1-7mm

7KW

Type B

2-10mm

10KW
