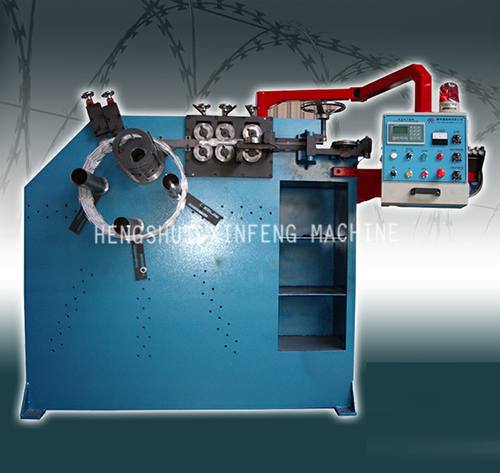

high speed razor barbed wire machine

high speed razor barbed wire machine production lineand characteristics:

Razor barbed wire is common safe operation material, it has advantages that strong sharp, easy to construct, low cost and so on. Razor barbed wire machine is a special equipment to manufacture razor barbed wire, it has advantages that operate simply, safety, efficient production, adapt to many sorts and so on.




Application:

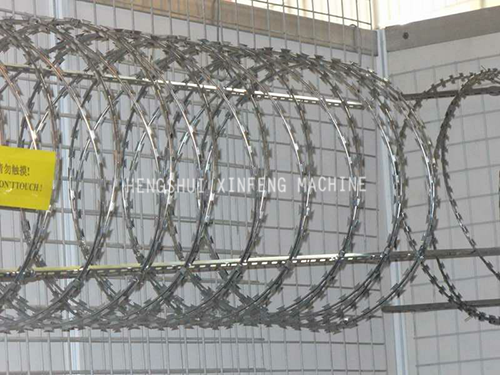

Finished products of razor barbed wire machine (production line) are used for all kinds of special places and temporary barriers of protective materials.
Composition and function of the equipment:

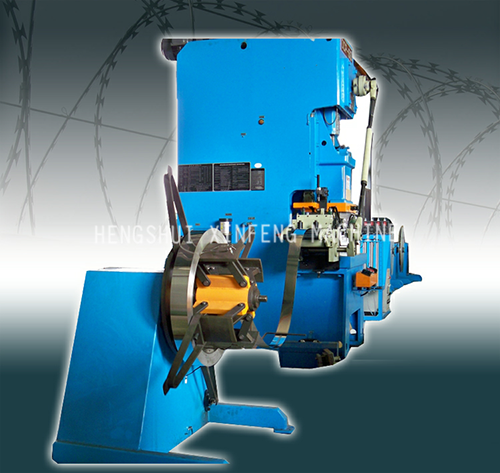

Blade punching machine is used for producing composite blade thorn rope when needed for the thorn. Blade punching machine including pay-off, punching machine, blade separation machine and re-coiler. Punching and shearing equipment is composed of press machine, servo feeding and mold.
Pay-off is used for storing and offering punching and shearing material; Servo feeding device offer galvanized plate to punch as certain rhythm and the specific length; Press machine and mold are used for shearing galvanized plate to blade; Re-coiler is divided into upper and lower rolling. Re-coiler is used for dividing shearing blade into a few stripes, rolls around.

Main parameters of machine:

1). Pay-off:

Item

Name

Parameter

1

Inner diameter

500mm,Adjustable

2

Outer diameter

1000mm

3

Loading weight

500Kg

4

Motor

Power:25W, Voltage: 380V, Rotation speed: 1400r/min

5

Machine size

700×700×1230mm

6

Weight

500Kg

2). Punching machine:

Item

Name

Parameter

1

Normal force

600KN

2

Slide block stroke

14mm

3

Sliding block strokes

1000 times/min

4

Max Die Set Height

200 mm

5

Die Height Adjustment

170-200 mm

6

Size of working table

634mmX470mm

7

Motor

Power:7.5KW, Voltage:380V, Voltage:380V

8

Size of equipment

1150*1100*1860mm

9

Weight

1926Kg

3). Mold:

Item

Name

Parameter

1

Mold 1

BTO30, 9 stripes

2

Mold 2

BTO28, 13 stripes



4). Re-coiler:

Item

Name

Parameter

1

Inner diameter

100mm

2

Outer diameter

550mm

3

Loading weight

500Kg

4

Motor

Power:0.75W, Voltage: 380V, Rotation speed: 1400r/min

5

Machine size

1510*1200*1820mm

6

Weight

458Kg


5).Equipment accessory :

Item

Name

Material

QTY

Remark

1

Spanner

45

1



2

Stacker box

Q235

1

Used for press machine

3

Re-coiler plate

Q235

5

Used for re-coiler

4

Car leveler

Q235

1



5

Foundation bolt

Q235-A

4

Contain nut and gasket

6

Expansion bolt

45

32

Contain nut and gasket
