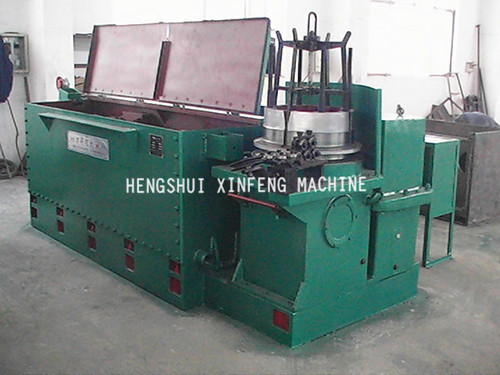

Water Type Wire Drawing Machine

Water Type Wire Drawing Machine;  Wire Drawing Machine;  Wire Drawing making Machine

Water Tank type wire drawing machine is Suitable for drawing the medium and high carbon wire whose diameter is less than 6.5mm, the drawn wire can be use as wire rope, spring wire, bead wire, electrical power wire, spoke wire and so on. Machine Features: Wire Drawing Die can be cold by immersing in the saponification liquid; Drive with two powerful special combination of narrow V belt drive gear boxes Control type: normal control, frequency control Conpare with traditional pulley-type drawing machine, it can save 50% power, low investment, los sapce needed to install, saving operator (one person can operate many machines). Note: The drawing passage number is designed according to customer's requirements.

The Finished Products (Wire):

Item(Unit)

LT-12/630

LT-11/560

LT-9/560

LT-15/450

LT-11/450

LT-17/260

Capstan dia.(mm)

630

560

560

450

450

260

Draw passage(time)

12

11

9

15

11

17

Max incoming dia.(mm)

5.5-6.5

5.5-6.5

3.2-5.6

4.0-5.5

8.0(copper)3.8-4.0

2.8

Min outgoing dia.(mm)

2.0-3.5

2.0-2.5

1.4-3.0

1.5-2.0

3.0-1.5

0.5-0.9

Total compressibility(%)

90

90

90

90

84

75

Average partial compressibility(%)

17.8

17.8

18.25

15.6

15

15.8

Wtre drawing line speed(m/s)

4.33

4.33

4.17

4.17

4.37

8

Motor power(KW)

155

130

130

80-90

80

55

Dimersion(mm)

4680*3000*1840

4680*3000*1840

5980*3500*1840

5900*3600*1780

5780*3300*1640

5000*3000*1640

Weight(kg)

16000

14000

12000

13000

11000

9000
