Inverted Vertical Wire Drawing Machine

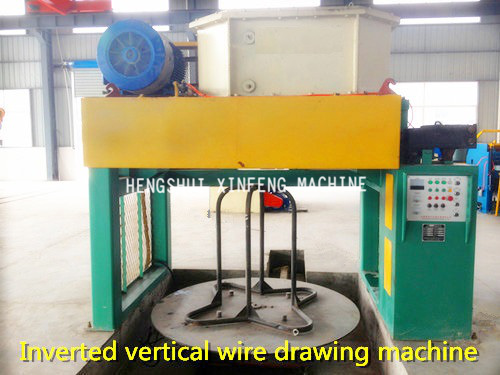

Inverted Vertical Wire Drawing Machine/
Inverted vertical drawing machine is no sliding mode to draw low carbon steel wire, stainless steel wire, steel wire and non-ferrous metal in the coarse, diameter and development equipment, applicable to the standard parts industry, supermarket shelves manufacturing industry, wire processing enterprises.
1. Machine features:
Use strong narrow v-belt combination harden tooth reducer or pendulum ring reducer; heavy recoiler; Capstan is forced air cooling; Pneumatic pressure wheel; Recoil is auto and ID can be adjusted; AC frequency speed adjustment; easy operate, safe and reliable, energy saving more than 30%.
2. Working principle:
Motor drive the capstan through the pulley and triple gear transmission, traction wire to draw the wire. The wire after drawing will get through the wire roller and fall onto the wire recoiler, wire recoiler will rotate synchronous with the capstan.
3. Structure features:
This equipment is a handstand type wire drawing machine, the wire after drawing can be directly to fall onto the wire recoiler, so as to take-up the wire of 1-2T.
4. Construction:

Vertical wire drawing machine contains machine frame, reducer, drum, recoiler, trolley, pneumatic system, AC frequency conversion electric control system and motor.




Items

Unit

WL560

WL600

WL750

WL800

WL900

WL1000

WL1200

Capstan dia.

Mm

560

600

750

800

900

1000

1200

Drawing speed

r/min

25

25

20

20

20

20

20

Max drawing dia.

Mm

8-10

12

14

8-14

10-16

12-18

25-30

Max. speed

M/min











60

35

Single reduction rate

20%~30%

Control method

Frequency speed adjust

Recoil motor

3kw

Motor power

kw

15-18.5

22

30

45

45

55

75

Gearbox model

JZQ

560

600

750

800

900

1000

1200

Weight

kg

1300

2300

2700

3500

3500

3500

7000
