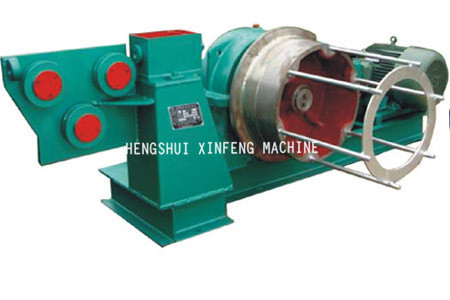

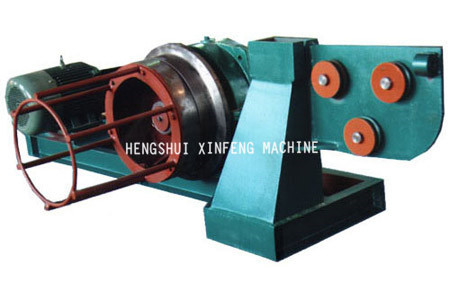

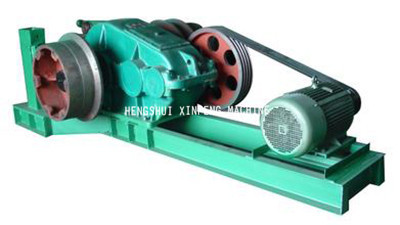

Horizontal Wire Drawing Machine

Horizontal Wire Drawing Machine; Double Head Wire Drawing Machine
The drawing machine is used to draw high carbon wire, medium carbon wire and low carbon steel wire, it is easy to operate, the two capstans can draw the wire at the same time.

Capstan material: cast steel


Bull Block Copper Wire Drawing Machine


Double Capstan Type Wrie Drawing Machine



Main parameter:

Model

LWD350

LWD400

LWD550

LWD650

LWD750

LWD850

LWD1000

Capstan dia. (mm)

350

400

550

650

750

850

1000

Max. inlet wire dia. (mm)

6.5

8

10

12

14

16

18

Speed (m/min)

25

25

35

30

20

20

20

Motor power (kw)

11

15

18.5

22

30

45

55

Reducer

ZQ350

ZQ400

ZQ550

ZQ650

ZQ750

ZQ850

ZQ1000

Weight (kg)

850

1100

1300

2300

2700

3500

5000

The finished products (wire):
