Expansion joint bead machinery

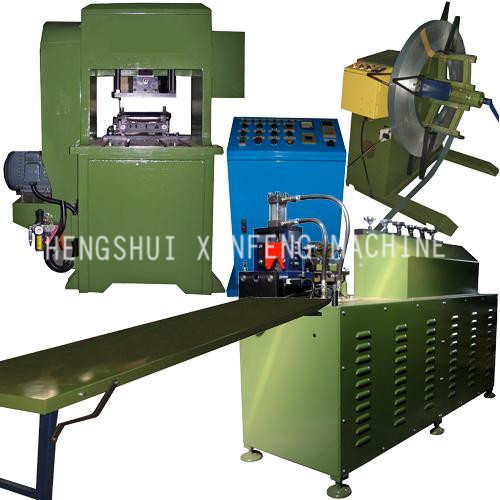

Movement bead production line/Expansion joint bead machine
Description of movement bead production line:

Movement bead production line is used to produce the movement bead which is mainly used to protect the angle of the wall.

Maximum inner diameter: 480mm, can be adjustable
Loading weight: 1000Kgs
Max. strip width: 150mm
Total motor power: 9.5kw
Punching press: 15Tons
Mesh opening size: 25*10mm, according to the draw
Material thickness: 0.3-0.7mm
Production speed: 300 strokes/min
Layout size: 8600*1000*1750mm
Machine weight: 4980kg
Max. Length – 3,000mm

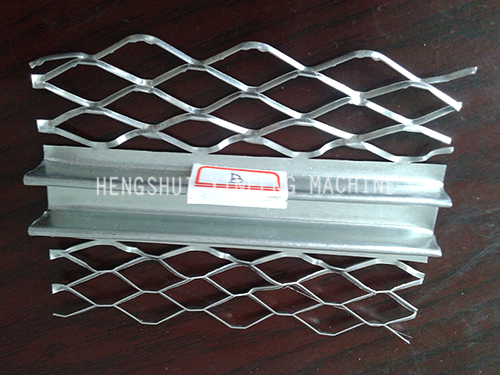

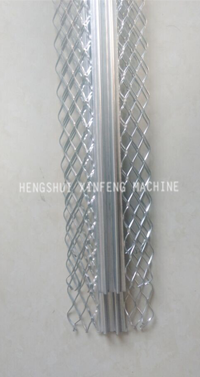

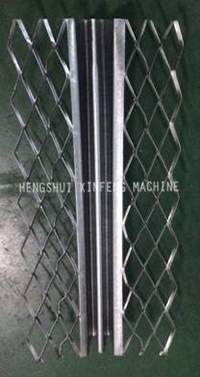

The finished products (movement bead)
