Steel Sheet Cutting Machine

 Steel Sheet Cutting Machine/Automatic Steel Sheet Straightening flatting and Cutting Machine /Automatic  Steel Sheet Straightening flatting and Cutting production line/Automatic Steel Sheet Cut to Length Line Steel Sheet Straightening fleating and Cutting Machine is to cut cold steel rolling curling sheet, heat steel rolling curling.
Performance and structure:

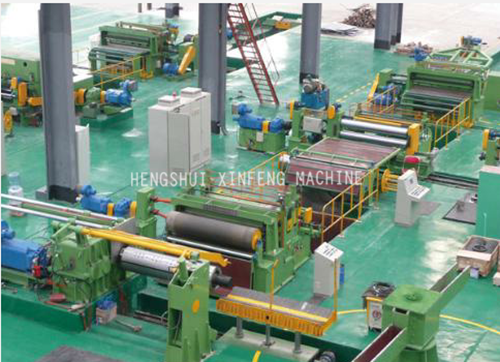

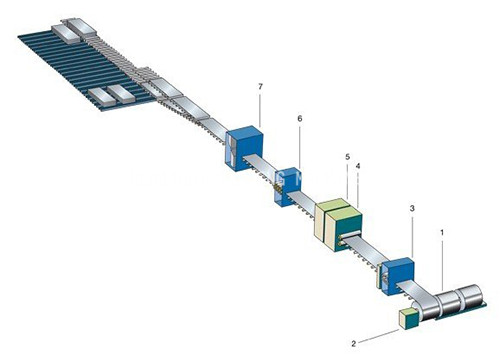

The sheet metal cutting line can do uncoiling, straightening, gauging, cross-cutting to length and stacking work. It mainly includes uncoiler, straightener, gauge, shearer, conveyor,stacker, hydraulic system, pneumatic system and electrical system, etc. The line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolled carbon steel, tinplate, stainless steel and all e other kinds of metal materials with surface coating. The cut to length line is controlled by PLC system. The information of length, shearing numbers and speed can be input to the PLC systems via HMI(Human Machine Interface) touch screen. When the needed shearing quantity is reached the line can stop automatically. The line speed can be adjusted, It has a gauge with high precision, and whole line can work automatically and operate easily, smooth plates can be made.





2.cutting machine for metal and steel

Specifications:

main material

all kinds of metal coil

coil weight(ton)

3,5,10,15,20,25,30,40

coil width(mm)

650,850,1000,1300,1600,2000,2500

coil thickness(mm)

0.25-2,0.4-3,0.5-4,1-6,2-8,3-10,4-16,5-20,8-25

coil I.D(mm):

508mm (470-610)

coil O.D (mm):

1200-1800

line speed(m/min)

0-20,0-25,0-40,0-60,10-100

Leveling accuracy(mm/m*m)

1.2-2.0

Cutting accuracy(mm/m)

0.5

voltage/ HZ

380/440V-50HZ   660V-60HZ

capacity load

2500-5500 tons/ month
